Tianjin Binhai Yashanway Ntshuam thiab Export Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov chaw muag khoom ntawm phab ntsa vaj huam sib luag yob txoj kev tshuab hauv Suav teb, tshwj xeeb hauv kev muab cov kev pabcuam zoo. Yog hais tias koj yuav mus rau lag luam wholesale qhov tshiab tshaj plaws phab ntsa vaj huam sib luag yob txoj kev tshuab ua nyob rau hauv Suav teb, txais tos kom tau txais cov qauv dawb los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.

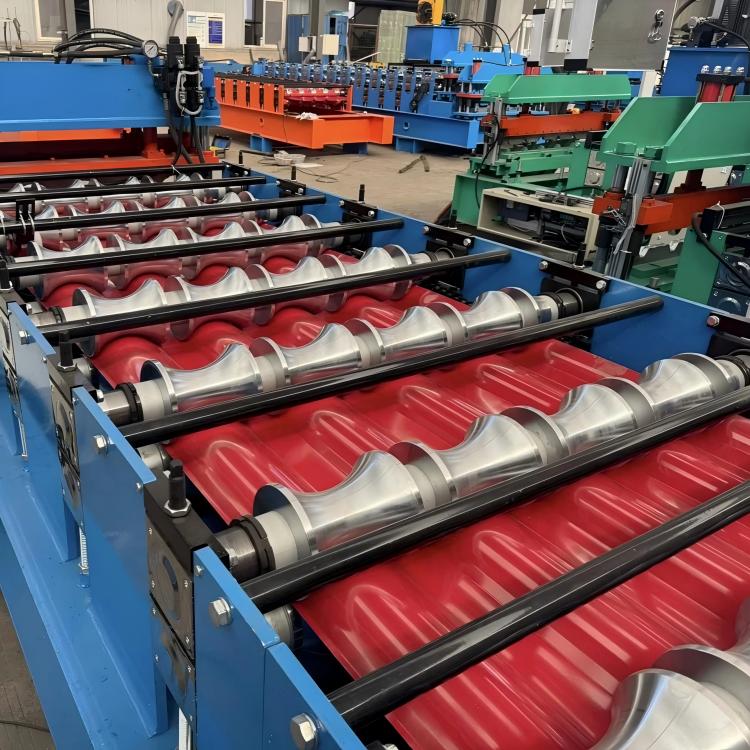

Phab Ntsa Vaj Huam Sib Luag Roll Forming Tshuab yog cov cuab yeej siv tsis siv neeg txias txias tsim tsim los tsim ntau yam hlau phab ntsa panels rau kev tsim vaj tsev. Nws koom ua ke uncoiling, leveling, xuas nrig ntaus, yob txoj kev thiab hydraulic txiav nyob rau hauv ib chav tsev, realizing tas mus li ib tug - sij hawm molding. Lub Phab Ntsa Vaj Huam Sib Luag Roll Forming Tshuab yog sib xws nrog PPGI, GI, galvanized steel thiab aluminium ntawv, ua tau raws li qhov xav tau ntau yam ntawm cov khoom siv sab nrauv thiab sab hauv phab ntsa zoo nkauj.
Kev siv siab -precision alloy rollers thiab PLC ntse tswj qhov system, Phab ntsa Vaj Huam Sib Luag Roll Forming Tshuab ua kom lub vaj huam sib luag du, qhov loj me thiab tsis muaj deformation. Nws txhawb customized vaj huam sib luag dav, thickness thiab embossed qauv, adapting rau txawv architectural tsim yuav tsum tau. Nrog kev khiav ceev ceev thiab ruaj khov -ntev ntev, cov cuab yeej siv tau zoo txo cov khoom pov tseg thiab txhim kho cov khoom tiav tiav.
Main Product Features
1. Tsis siv neeg ua haujlwm puv: Phab Ntsa Vaj Huam Sib Luag Roll Forming Tshuab txais PLC kov lub vijtsam tswj, paub txog ib qho - kev ua haujlwm tseem ceeb thiab kev tsim khoom tsis tu ncua.
2. Kev ua haujlwm siab Precision: Nruab nrog siab -hardness rollers kom ntseeg tau tias lub vaj huam sib luag tiaj tus, cov lus qhia tshwj xeeb thiab ruaj khov molding nyhuv.
3. Wide Material Compatibility: Haum rau xim hlau ntawv, galvanized ntawv thiab txhuas ntawv los tsim ntau yam phab ntsa vaj huam sib luag profiles.
4. Kev ua haujlwm siab ntau lawm: Kev sib sau ceev ceev nrog cov hydraulic txiav, zoo heev txhim kho lub Hoobkas txhua hnub tso zis.
5. ruaj khov & ruaj khov: Thickened tshuab lub cev thiab hnav-cov khoom tiv thaiv kom tsis txhob muaj nqi kho thiab ua haujlwm ntev.
Specification
|
Yam khoom |
Paub meej |
|
Khoom npe |
Phab ntsa vaj huam sib luag yob txoj kev tshuab |
|
Khoom siv |
PIB, GI, GL |
|
Dav |
914mm / 925mm / 1000mm / 1200mm / 1220mm / 1250mm |
|
Thickness |
0.3mm-0.7 hli |
|
Yield zog |
235 MPa - 550 MPa |
|
Fais fab mov |
380V, 50Hz, 3P (Customizable) |
|
Main Lub cev muaj zog |
5.5 kW ua |
|
Txiav lub cev muaj zog |
4 kWm |
|
Hydraulic Txiav |
4 kWm |
|
Tsim cov chaw nres tsheb |
14 - 22 kab (raws li profile) |
|
Frame Structure |
Welded structural steel, thickness 18 hli |
|
Roller Khoom |
45 # steel, polished thiab coated nrog 0.05 hli chrome nto |
|
Ncej kab |
75mm ua |
|
Cov saw |
1.2 ntiv |
|
Ceev |
15-30m / min |
|
Txiav Hom |
Hydraulic txiav tshuab (nres txiav) |
|
Cutter Tuag Khoom |
Cr12 hlau |
|
Tswj System |
Panasonic PLC, inverter, Omron encoder |
|
Zuag qhia tag nrho Dimensions (L × W × H) |
7.5 m × 1.3 m × 1.5 m |
Txheej Txheem Flow Diagram
Hom Corrugated phab ntsa thiab ru tsev phaj
Tus neeg thov ntawm Corrugated yob txoj kev tshuab
▪️ ru tsev, phab ntsa panels, laj kab, partitions, carports, thiab lwm yam.
▪️Granaries, tsiaj txhu sheds thiab greenhouse coverings.
▪️ Kev tiv thaiv yeeb nkab thiab lub plhaub tank.
▪️ Choj thiab qhov hauv ob sab phlu, guardrails thiab tsheb thauj khoom.
Qhov siab -cov cuab yeej tsim ua tau zoo no nta kev ua haujlwm yooj yim, tus nqi tsis ua haujlwm thiab lub neej ua haujlwm ntev, tsim nyog rau lub sijhawm ntev - kev lag luam batch ntau lawm. Lub Phab Ntsa Vaj Huam Sib Luag Roll Forming Tshuab yog dav siv hauv prefab tsev, factories, warehouses thiab coj mus muag vaj tse, ua cov khoom uas nyiam ua rau niaj hnub steel qauv thiab kho kom zoo nkauj tsim lag luam.
Cim npe nrov: phab ntsa vaj huam sib luag yob txoj kev tshuab, Tuam Tshoj phab ntsa vaj huam sib luag yob txoj kev tshuab manufacturers, lwm tus neeg, Hoobkas
